he TouchDisplays 1515E series Point of sale is a high-end product with proven technologies.
Featured with stable full aluminum casing and top performance powered by powerful fanless processors and capacitive touch screens.
A wide range of processors options and full compatibility with multiple accessories, make it able to adapt to all applications.
Extremely powerful and low consumption fanless processors.
· Rotatable display adapts to users’ using habit.
· 15 inch true-flat and zero-bezel projected capacitive multi touch screen
· Stable full aluminum casing with our own patented design.

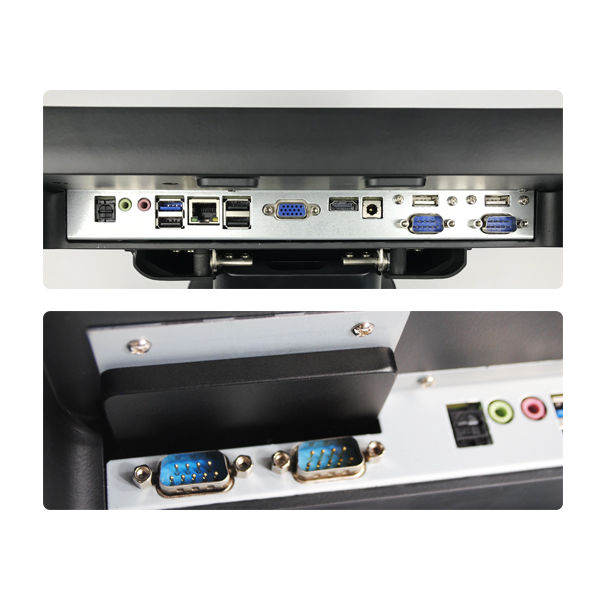

· Multiple interfaces for all kinds peripherals.

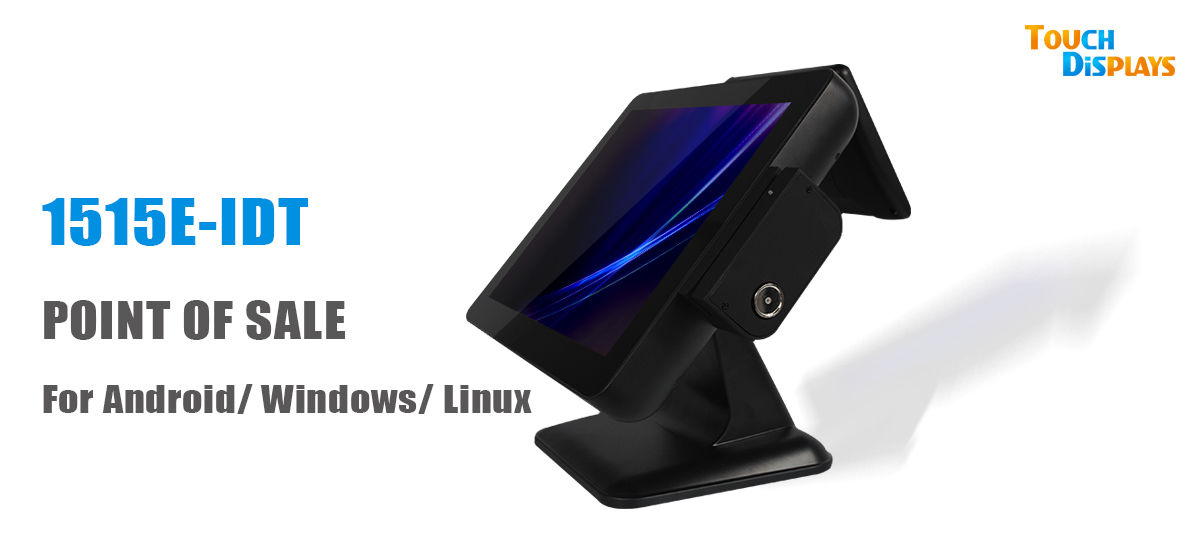

TouchDisplays 1515E series Point of sale
Model
1515E-IDT Case/Bezel Color
Black/Silvery/white(Customized) Display Size
15.0″ Touch panel (True-flat Style)
Projected Capacitive touch screen (Resistive touch screen optional) Touch response time
8ms (PCT typical) & 5ms(Resistive) Touchcomputors Dimensions
372x 212 x 318 mm LCD Type
TFT LCD(LED backlight) Useful Screen Area
304 mm x 228 mm Aspect ratio
4:3 Optimal (native) Resolution
1024 x 768 LCD panel Pixel pitch
0.297 x 0.297 mm LCD panel Colors
16.7 million LCD panel Brightness
250 cd/m2 LCD panel Contrast Ratio
800:1 LCD panel Response Time
30 ms Viewing Angle
Horizontal
±80° or 160° total (left/right) (typical, from center)
Vertical
±80° or 160° total (up/down) output Video signal connector
Mini D-Sub 15-Pin VGA type and HDMI type Input interface
2*USB 2.0 & 2*USB 3.0 & 2*COM(3*COM optional) 1*Earphone1*Mic1*RJ45(2*RJ45 optional) Extend interface
2*USB2.02*Sata3.02*PCI-E(4G SIM card, 2.4G&5G wifi & Bluetooth module optional) Power Supply Type
Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5￠) AC to DC power brick input: 100-240 VAC, 50/60 Hz Power Consumption: less than 60W ECM (Embed Computer Modul)
ECM2: Intel processor J1800 (Dual Core 2.41GHz,Fanless) ECM3: Intel processor J1900 (Quad-core 2.0GHz/2.4GHz,Fanless) ECM4: Intel processor i3-4010U (Dual Core 1.7GHz,Fanless) ECM5: Intel processor i5-4200U (Dual Core 1.6GHz/2.6GHz Turbo, Fanless) ECM6: Intel processor i7-4500U (Dual Core 1.8GHz/3GHz Turbo, Fanless) CPU Upgrade:3855U & I3-I7 series 5th 6th 7th optional SATA3:HDD 500G(up to 1TB optional);SDD 32G(up to 128G optional) Memory: DDR3 4G(extend up to 16G Optional) ECM8: RK3288 Cortex-A17 quad-core 1.8G, GPU:Mali-T764;Operation System: 5.1 ECM9: RK3368 Cortex-A53 8Core 1.5GHz;GPU:PowerVR G6110;Operation System: 6.0 ECM10:RK3399 Cortex-A72+Cortex-A53 6-Core 2GHz;GPU:Mail-T860MP4;Operation System: 7.1 Rom:2G(up to 4G optional);Flash:8G(up to 32G optional) Temperature
Operating: 0°C to 40°C ;Storage -20°C to 60°C Humidity (non condensing)
Operating: 20%-80%; Storage: 10%-90% Shipping Carton Dimensions
450 x 280 x 470 mm(with stand);470 x 210 x 420 mm(without stand) Weight (approx.)
Actual: 6.8 kg ;Shipping: 8.2 kg Warranty Monitor
3 years(Except for LCD panel 1 year) Backlight lamp life: typical 50,000 hours to half brightness Agency Approvals
CE/FCC RoHS (UL & GS customized) Mounting Options
75 mm and 100mm VESA mount(Remove Stood)
